Webcam Test with UWP

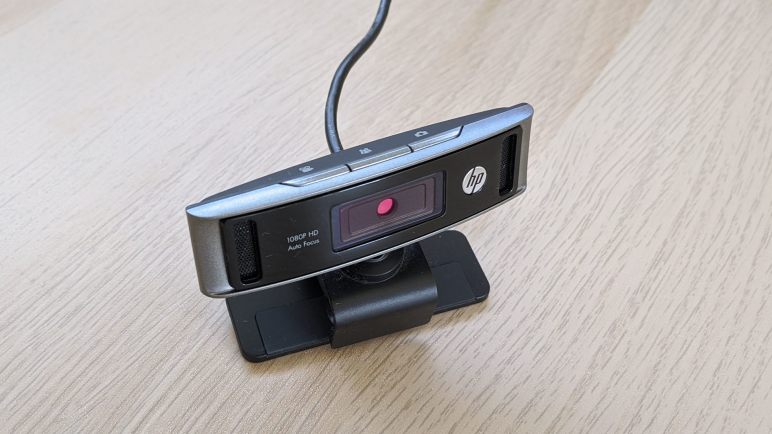

Once I had an old webcam taped to the carriage of a retired 3D printer, I shifted focus to writing code to coordinate the electronic and mechanical bits. My most recent experiments in application development were in the Microsoft UWP platform, so I’m going to continue that momentum until I find a good reason to switch to something else.

Microsoft’s development documentation site quickly pointed me to an example that implements a simple camera preview control. It looks like the intent here is to put up a low resolution preview so the user can frame the camera prior to taking a high resolution still image. This should suffice as a starting point.

In order to gain access to the camera feed, my application must declare the webcam capability. This will show the user a dialog box that the application wants to access the camera with options to approve or deny, and the user must approve before I could get video. Confusingly, that was not enough. If I approve camera access I still see errors. It turns out that even though I didn’t care about audio, I had to request access for the microphone as well. This seems like a bug but a simple enough workaround in the short term.

Once that was in place, I got a low resolution video feed from the camera. I don’t see any way to adjust parameters of this live video. I would like to shift to a higher resolution and I’m willing to accept lower frame rate. I would also like to reduce noise and I’m willing to accept lower brightness. The closest thing I found to camera options is something called “camera profiles“. For the moment this is a moot point because when I queried for profiles on this camera, IsVideoProfileSupported returned false.

I imagine there is another code path to obtain video feed, used by video conference applications and video recording apps. There must be a way to select different resolutions and adjust other parameters, but I have a basic feed now so I’m content to put that on the TO-DO list and move on.

The next desire is ability to select a different camera, since laptops usually have a built-in camera and I would attach another via USB. Thanks to this thread on Stack Overflow, I found a way to do so by setting VideoDeviceId property of MediaCaptureInitializationSettings.

And yay, I have a video feed! Now I want to move the 3D printer carriage by pressing the arrow keys. I created keyboard event handlers KeyDown and KeyUp for my application, but the handlers were never called. My effort to understand this problem became the entry point for a deep rabbit hole into the world of keyboard events in UWP.

[Code for this exploration is public on Github.]
