Window Shopping: ElectronJS

The Universal Windows Platform allows Windows application developers to create UI that can dynamically adapt to different screen sizes and resolutions, as well as adapting to different input methods like mouse vs. touchscreen. The selling point is to make it as easy and robust as a web page.

So… why not have a web page? Web developers were the pioneers in solving these problems and we might want to adapt existing solutions instead of Microsoft’s effort to replicate them on Windows. But a web page has limitations relative to native applications, and hardware access is definitely one such category. (For USB specifically, there is web USB, but that is not a general hardware access solution.)

Thus occasionally developers familiar with web technology had a need to build platform native applications. Some of them decided to build their own native application framework to support web-style interfaces across multiple platforms. This is why we have Electron. (Sometimes ElectronJS to differentiate it from its namesake.)

All the x86_64 operating systems are supported: Windows, MacOS, and Linux are first tier platforms. There’s no fundamental reason Electron won’t work elsewhere, but apparently users need to be prepared to deal with various headaches to run it on platforms like a Raspberry Pi. And that’s just getting it to run, that doesn’t even touch on the most interesting part of running on a Raspberry Pi: its GPIO pins.

Like UWP, given graphical capabilities of modern websites, I have no doubt I can display arbitrary data visualization under Electron. My favorite demo of what modern WebGL is capable of is this fluid dynamics simulation.

The attention then turns to serial communication, and a web search quickly pointed me to electron-serialport Github repo. At first glance this looks promising, though I have to be careful when building it into an Electron app. The tricky part is that this serial support is native code and must be compiled to match the version in a particular release of Electron. It appears the tool electron-rebuild can take care of this particular case. However, it sets expectation that anything Electron app dealing with hardware would likely also require a native code component.

If I ever need to build a graphically dynamic application that needs to run across multiple operating systems, plus hardware access that is restricted to native applications, I’ll come back and take a closer look at Electron. But it’s not the only game in town for a offline local application based on web technology. For applications whose purpose is less about local hardware and more about online connectivity, we also have the option of Progressive Web Applications.

Roger Cheng

Window Shopping: Universal Windows Platform Fluent Design

Looking over National Instruments’ Measurement Studio reinforced the possibility that there really isn’t anything particularly special about what I want to do for a computer front-end to control my electronics projects. I am confident that whatever I want to do in such a piece of software, I can put it in a Windows application.

The only question is what kind of trade-offs are involved for different approaches, because there is certainly no shortage of options. There have been many application frameworks over the long history of Windows. I criticised LabWindows for faithfully following the style of an older generation of Windows applications and failed to keep updated since. So if I’m so keen on the latest flashy gizmo, I might as well look over the latest in Windows application development: the Universal Windows Platform.

People not familiar with Microsoft platform branding might get unduly excited about “Universal” in the name, as it would be amazing if Microsoft released a platform that worked across all operating systems. The next word dispelled that fantasy: “Universal Windows” just meant across multiple Microsoft platforms: PC, Xbox, and Hololens. UWP was also going to cover phone as well, but well, you know…

Given the reduction in scope and the lack of adoption, some critics are calling UWP a dead end. History will show if they are right or not. However that shakes out, I do like Fluent Design that was launched alongside UWP. A similar but competitive offering to Google’s Material Design, I think they both have potential for building some really good user interactivity.

Given the graphical capabilities, I’m not worried about displaying my own data visualizations. But given UWP’s intent to be compatible across different Windows hardware platforms, I am worried about my ability to communicate with my own custom built hardware. If something was difficult to rationalize a standard API across PC, Xbox, and Hololens, it might not be supported entirely.

Fortunately that worry is unfounded. There is a UWP section of the API for serial communication which I expect to work for USB-to-serial converters. Surprisingly, it actually went beyond that: there’s also an API for general USB communication even with devices lacking standard Windows USB support. If this is flexible enough to interface arbitrary USB hardware other than USB-to-serial converters, it has a great deal of potential.

The downside, of course, is that UWP would be limited to Windows PCs and exclude Apple Macintosh and Linux computers. If the objective is to build a graphically rich and dynamically adaptable user interface across multiple desktop application platforms (not just Windows) we have to use something else.

Roger Cheng

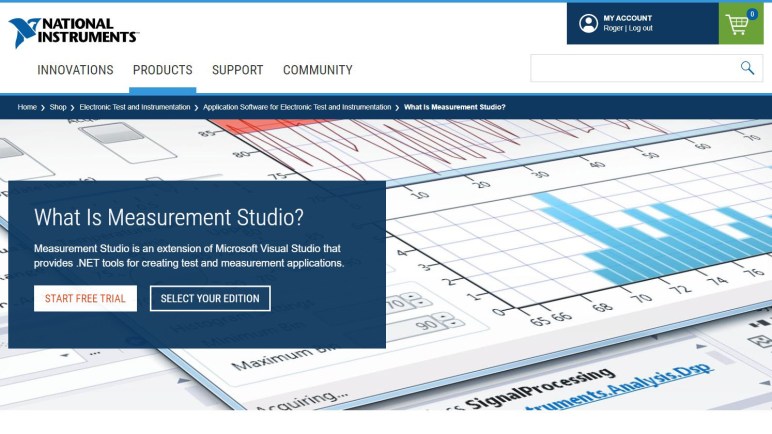

A Quick Look At NI Measurement Studio

While digging through National Instruments online documentation to learn about LabVIEW and LabWindows/CVI, I also came across something called Measurement Studio. This trio of products make up their category of Programming Environments for Electronic Test and Instrumentation. Since I’ve looked at two out of three, might as well look at the whole set and jot down some notes.

Immediately we see a difference in the product description. Measurement Studio is not a standalone application, but an extension to Microsoft Visual Studio. By doing so, National Instruments takes a step back and allows Microsoft Visual Studio to handle most of the common overhead of writing an application, stepping in only when necessary to deliver functionality valuable to their target market. What are these functions? The product page lists three bullet points:

  • Connect to Any Hardware – Electronics equipment industry standard communication protocols GPIB, VISA, etc.
  • Engineering UI Controls – on-screen representation of tasks an electronics engineer would want to perform.
  • Advanced Analysis Libraries – data processing capabilities valuable to electronics engineers.

Basically, all the parts of LabVIEW and LabWindows/CVI that I did not care about for my own projects! Thus if I build a computer control application in Microsoft Visual Studio, I’m likely to just use Visual Studio by itself without the Measurement Studio extension. I am not quite the target market for LabVIEW or LabWindows, and I am completely the wrong market for Measurement Studio.

Even if I needed Measurement Studio for some reason, the price of admission is steep. Because Measurement Studio is not compatible with the free Community Edition of Visual Studio, developing with Measurement Studio requires buying license for a paid tier of Microsoft Visual Studio in addition to the license for Measurement Studio.

And finally, it has been noted that the National Instruments products require low level Win32 API access that prevents them from being a part of the new generation of Windows app that can be distributed via Microsoft Store. These newer apps promise to have better installation and removal experience, automatic updates, and better isolated from each other to avoid incompatibilities like “DLL Hell”. None of those benefits are available if an application pulls in National Instruments software components, which is a pity.

Earlier I said “if I build a computer control application in Microsoft Visual Studio, I’ll just use Visual Studio by itself without the Measurement Studio extension” which got me thinking: that’s a good point! What if I went ahead and wrote a standard Windows application with Visual Studio?

Roger Cheng

Digging Further Into LabWindows/CVI

Following initial success of RS-232 serial communication in a LabWindows/CVI sample program, I dived deeper into the documentation. This RS-232 library accesses the serial port at a very low level. On the good side, it allows me to communicate with non-VISA peripherals like a consumer 3D printer. On the bad side, it means I’ll be responsible for all the overhead of running a serial port.

The textbook solution is to leave the main program thread to maintain responsive UI, and spin up another thread to keep an eye on the serial port so we know when data comes in. The good news here is that LabWindows/CVI help files say RS-232 library code is thread safe, the bad news here is that I’m responsible for thread management myself. I failed to find much in the help files, but I did find something online for LabWindows/CVI multi-threading. Not super easy to use, but powerful enough to handle the scenario. I can probably make this work.

Earlier I noted that LabWindows/CVI design seems to reflect the state of the art about ten years ago and not advanced since. This was most apparent in the visual appearance of both the tool itself and of the programs it generated. Perhaps the target paying audience won’t put much emphasis on visual design, but I like to put in some effort in my own projects.

Which is why it really pained me when I realized the layout in a LabWindows/CVI program is fixed. Once they are laid out in the drag-and-drop tool, that’s it, forever. Maximizing the window will only make the window larger, all the controls stay the same and we just get more blank space. I searched for an option to scale windows and found this article in National Instruments support, but it only meant scaling in the literal sense. When this option is used, and I maximize a window, all the controls still keep the same layout but they just get proportionally larger. There’s no easy way to take advantage of additional screen real estate in a productive way.

This means a default LabWindows/CVI program will be unable to adapt to a screen with different aspect ratio, or be stacked side-by-side with another window, or any of the dynamic layout capabilities I’ve come to expect of applications today. This makes me sad, because the low-level capabilities are quite promising. But due to the age of the design and the high cost, I’m likely to look elsewhere for my own projects. But before I go, a quick look at one other National Instruments product: Measurement Studio.

Roger Cheng

LabWindows/CVI Serial Communication Test

Once I was done with LabWindow’s Hello World tour, it was time for some independent study, focused on fields I’m personally interested in. Top of the list was serial port communications. Researching them ahead of time indicated it was capable of arbitrary protocols. Was that correct? I dived into the RS-232 API to find out.

Before we can open a serial port for communication, we must first find it. And the LabWindows/CVI RS-232 library for enumerating serial port is… nothing. There isn’t one. A search on user forums indicate this is the consensus: if someone wants to enumerate serial ports, they have to go straight to the underlying Win32 API.

Puzzled at how a program is supposed to know which COM port to open without an enumeration API, I went into the sample applications directory and found a generic serial terminal program. How did they solve this problem? They did not: they punted it to the user. There is a slider control for the user to select the COM port to open. If the user doesn’t know which device is mapped to which COM port, it is not LabWindows’ problem. So much for user-friendliness.

I had a 3D printer handy for experimentation, so I tried to use the sample program to send some Marlin G-code commands. The first obstacle is baud rate: USB serial communication can handle much faster speeds than old school RS-232 so my printer defaults to 250,000 baud. The sample program’s baud selection control only went up to 57,600 baud so the sample program had to be modified to add a 250,000 baud option. After that was done, everything worked: I could command the printer to home its axis, move to position, etc.

First test: success! Time to dig deepeer.

Roger Cheng

LabWindows/CVI Getting Started Guide

A quick look through the help files for LabWindows/CVI found it to be an interesting candidate for further investigation. It’s not exactly designed for my own project goals, but there is enough alignment to justify a closer look.

Download is accomplished through National Instruments Package Manager. Once installed and updated I could scroll through all of the National Instruments software and select LabWindows/CVI for installation. As is typical of development tools, it’s not just one package but many (~20) separate packages that get installed. Ranging from the actual IDE to runtime library redistributable binaries.

Once up and running I find that my free trial period lasts only a week, but that’s fine as I only wanted to run through their Hello World tutorial in LabWindows/CVI Getting Started Guide (PDF). The tutorial walks through generating a simple application with a few buttons and a graphing control that displays a generated sine wave. I found the LabWindows/CVI interface to be familiar, with a strong resemblance to Microsoft Visual Studio which is probably not a complete coincidence. The code editor, file browser, debug features, and drag-and-drop UI editor are all features I’ve experienced before.

The biggest difference worth calling out is the UI-based tool “Function Panel” for generating library calls. While library calls can be typed up directly in text like any other C API, there’s the option to do it with a visual representation. The function panel is a dialog box that has a description of the function and all its parameters listed in text boxes that the developer can fill in. When applicable, the panel also shows an example of the resulting configuration. Once we are satisfied with a particular setup, selecting “Code”/”Insert Function Call” puts all parameters in their proper order in C source code. It’s a nifty way to go beyond a help page of text, making it a distinct point of improvement over the Visual Studio I knew.

Not the modern Microsoft Visual Studio, though, more like Visual Studio of many years ago. The dated visual appearance of the tool itself are consistent with old appearance of available user controls. They are also consistent with the documentation, as that Getting Started PDF was dated October 2010 and I couldn’t find anything more recent. The latest edition of the more detailed LabWindows/CVI Programmer’s Reference Manual (PDF) is even older, at June 2003.

All of these data points make LabWindows appear to be a product of an earlier generation. But never mind the age – how well does it work?

Roger Cheng

Window Shopping LabWindows/CVI

I’ve taken a quick look over Keysight VEE and LabVIEW, both tools that present software development in a format that resembles physical components and wires: software modules are virtual instruments, data flow are virtual wires. This is very powerful for expressing certain problem domains and naturally imposes a structure. From a software perspective, explicit description of data flow also makes it easier to take advantage of parallel execution possible on modern multicore processors.

But imposing certain structures also make it hard to venture off the beaten path, which is why attention now turns to LabVIEW’s stablemate, LabWindows/CVI. They both offer access to industry standard communication protocols plus data analysis and visualization tools, but the data flow and program structure is entirely different. Instead of LabVIEW’s visual “G” language, LabWindows/CVI uses ANSI C to connect all its components and control flow of data and execution. I am optimistic it will be more aligned with my software experience.

Like LabVIEW, the program help files for LabWindows/CVI is also available for download and perusal. Things look fairly promising at first glance.

I found a serial communication API that can read and write raw bytes under:

  • Library Reference
    • RS-232 Library
      • function tree

For user display, I found something that resembles LabVIEW’s “2D Picture Control” here called a “Canvas Control”. An overview of drawing with Canvas Control’s basic drawing primitives can be found under:

  • Library Reference
    • User Interface Library
      • Controls
        • Control Types
          • Canvas Controls
            • Programming with Canvas Controls

I’m encouraged by what I found looking through LabWindows/CVI help files, enough to download the actual development tool and get hands-on with it.

Roger Cheng

Window Shopping: LabVIEW 2019

After taking a quick look over Keysight VEE, I switched focus to LabVIEW by National Instruments. I don’t know how directly these two products compete in the broader market, but I do know they have some overlap relating to instrument control. I had some exposure to LabVIEW many years ago thanks to LEGO Mindstorms, which had used a version of LabVIEW for programming the NXT brick. Back then the Mindstorm-specific version was very closely guarded and, when I lost track of my CD-ROM, I was out of luck because neither NI nor LEGO made it available for download. Thankfully that has since changed and the Mindstorm flavor of LabVIEW is available for download.

But I’m not focused on LEGO right now, today’s aim is to see how I might fulfill my general computer control goals with this tool. For that information I was thankful National Instruments made help files for LabVIEW available for download so I can investigate without a full download and installation of the full tool suite. It took a bit of hunting around to find them, though, and the download page was titled LabVIEW 2018 but it has a download link for the 2019 help files.

I found a help page “Serial Port Communication” under the section:

  • Controlling Instruments
    • Types of Instruments

And it assumes the user would only be controlling devices that can communicate to VISA protocol, not general serial communication. There were more serial communication information in the section:

  • VISA Resource
    • I/O Session
      • Serial Instr

There’s also an online tutorial for instrument communication. This page has a flowchart that implied there’s a “Direct I/O” that we can fallback to if all else fails, but I found no mention for performing this direct I/O in the help files.

The graphics rendering side was more straightforward. There’s no mention of ActiveX control here, but under:

  • Fundamentals
    • Graphs and Charts
      • Graphics and Sound VIs

There are multiple pages of information for a “2D Picture Control” with drawing primitives like points, lines, arcs, etc. Details on this drawing API are found under:

  • VI and Function Reference
    • Programming VIs and Functions
      • Graphics & Sound VIs
        • Picture Plot VIs

However, it’s not clear this functionality scales to complex drawings with thousands (or more) of primitives. It certainly wouldn’t be the first time I used an API that stumbled as the data size grew.

So the drawing side looks workable pending a question mark on how well it scales, but the serial communication side is blocked. Until I find a way to perform that mystical direct I/O, I’m going to set LabVIEW aside and look at its sibling LabWindows/CVI.

[UPDATE: I’ve since found LabVIEW MakerHub and LINX, which allows LabVIEW to communicate with maker level hardware over serial.]

Roger Cheng

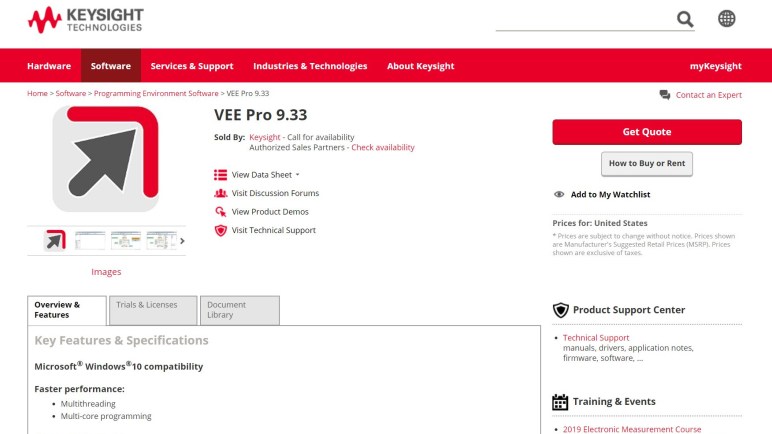

Window Shopping: Keysight VEE Custom Data Display

Looking over Keysight VEE’s support for device communication, I found there is only support for a limited subset of USB serial communication patterns. And even for the supported transaction model, it seems to be quite labor intensive to craft. It left me with the impression venturing outside VEE’s supported list of equipment is something to be avoided.

Attention then turn to VEE’s support for arbitrary display or data. Like its competitors in the space of test instrumentation software, there is an extensive library for data analysis common for the problem domain. This is useful for their paying customers, but again quite restrictive if we want to venture outside their supported list.

As far as I can tell by just reading their Advanced Techniques PDF, the method to add a custom data visualization component is to create an ActiveX control. This is a technology I haven’t thought about in years! I first learned of it in the context of Microsoft Visual Basic decades ago, where people could drag and drop UI components to build their application. Each of these visual components were built with technology that eventually became named ActiveX controls. This technology is so old not even Microsoft is investing in it now. They have moved on, giving stewardship to an open standards body.

The fact ActiveX is the state-of-the-art technology for extending VEE is telling. Looking over the recent history of VEE software releases, it has all the signs of a piece of software living on continuing life support. They are still releasing new versions on a regular basis, but the advances between releases are mostly in the form of new instrument support (GPIB and otherwise) and certification it will run on latest edition of Windows. I have seen very little in the way of new feature development or general evolution.

VEE seems to be perfectly suited to their target market: electronics engineers trying to automate a collection of instruments, every one of which support industry standard protocols. (Especially those made by Keysight.) Then, perform analysis of that data as typically needed by electrical engineers. But since my goal is to control arbitrary equipment communicating over USB serial, then process and display that data in ways unrelated to electrical engineering, I should set VEE aside and look at other options.

Roger Cheng

Window Shopping: Keysight VEE Serial Communication

When I was learning about industry standards for electronics test and measurement equipment automation, I quickly came across GPIB which has its roots in something Hewlett-Packard developed for their equipment. It made sense, then, that they would have a software suite to run on a PC and talk to these instruments via GPIB. This turned out to be something called VEE, but it is no longer a HP product. It has had multiple custodians. From HP it moved to Agilent, and now it is in the hands of Keysight Technologies.

So it was no surprise the focus would be on professional equipment with GPIB or the closely related USB-based successor USBTMC. There is also built-in support for a few other instrument standards, all packaged together in the IO Libraries Suite of a full VEE installation. However, I had a hard time finding any mention of how to communicate with custom-built equipment outside of supported protocols. It certainly wasn’t covered in their Quick Start Guide (PDF), so I moved on to Advanced Techniques (PDF).

I thought perhaps I would have to create what they call a “panel driver” for installation into VEE in order to support custom equipment, but a search for “How to write a VEE Panel Driver” failed to retrieve useful links. How do instrument manufacturers create and release VEE Panel Driver for their equipment? So far that is still a mystery.

In the absence of a custom panel driver, the next option is to specify a custom communication protocol directly in VEE, and such a thing can be built from their Transaction I/O mechanism. Suitable at least for query/response types of interaction. The exact commands being sent out and expected to be received are crafted step by step using VEE GUI. This seems very labor intensive but has the advantage of avoiding annoying and common byte processing bugs typical when such serial byte stream processing are written in C.

It’s not obvious from reading the document what happens if the VEE transaction specification is wrong and incoming serial data doesn’t match. This is not encouraging, neither were there any mechanisms to help support development of transaction I/O. There’s just trial and error. Seriously. This is a direct quote from the manual:

Many times the best way to develop the transactions you need is by using trial and error

(Chapter 4: Using Transaction I/O / Creating and Reading Transactions / Editing the Data Field / Suggestions for Developing Transactions)

I didn’t find any mention of how to deal with continuous data stream from devices that do not perform transaction-based communication. For example a thermometer that continuously reports temperature without prompting, or the Neato LIDAR. VEE does have a data polling feature, but that seems to be restricted to devices on specific subset of supported protocols and not arbitrary serial communication.

From this brief survey, it appears VEE support for arbitrary USB serial communication is quite limited. The next step is to look at how VEE support displaying arbitrary data.

Roger Cheng

New Project: Computer Control via USB Serial

Since I’ve started this blog I’ve explored several problem domains with a common thread: equipment automation by computer control. Most recently my CNC project running GRBL needed a computer G-code sender. 3D printers are similar, though most modern printers can run independently using G-code stored on a memory card. And finally the aborted thermoforming machine project that had ambition to use a Raspberry Pi as its brain.

In all of these cases, we had a piece of equipment that could communicate with a PC via a USB serial adapter, so we can let the hardware focus on low level tasks and the PC could perform higher level tasks. It would be useful to dig deeper into this world and get a better feel of the tools available for solving problems.

For this initial pass my focus will be on PC software that interfaces with arbitrary pieces of equipment that communicate via USB serial, and the primary motivation for PC involvement would be its ability to display data on a full sized computer monitor. These two considerations will be my “North Star” for prioritization.

As a starting point, I thought I’d look over a few examples from an existing ecosystem: that of computer controlled hardware for electronics measurement and testing automation. I didn’t think they would be directly applicable, but I didn’t know how to articulate why until I learned a little more.

As of this writing, my understanding is that such software’s value to professional engineers are in two areas that are near, but not quite, my own priorities for this investigation:

  • They are built around the IEEE-488 standard, a formalized version of GPIB interface that started as a proprietary solution (HP-IB) for Hewlett-Packard equipment but has grown into a de facto standard in this industry. This standard encompasses the physical connector, electrical interface, and software protocol. Recently, the popularity of USB meant USB has taken over the physical and electrical portions. But the GPIB communication protocol lives on as USB488, which I understand to be a part of USB TMC. This is different from USB serial adapters, which usually identify as USB CDC and/or ACM.
  • They offer an extensive collection of data analysis and visualization tools specialized to the field of electronics test and measurement. This does not necessarily mean they support custom rendering of arbitrarily large data sets.

As a first example of how those differences manifest in practice, let’s do a quick window-shopping pass of Keysight VEE.
