HP Stream 7 Battery Disconnect Test

I dusted off my HP Stream 7 tablet to see if it might be suitable for an always-on status display. I encountered some battery power management issues and wanted to see if I could try running it without a battery. Every Windows x86 laptop I’ve ever owned was happy to run without battery power and since my current intent is for a wired 24×7 display screen, I didn’t need the battery anyway.

HP Stream 7 00 back plate intact

This experiment was made possible by the design of the device. Relative to almost every other piece of modern portable electronics, the HP Stream 7 is easy to open up. The back plate can be opened without tools, just follow the gap they designed and start prying plastic clips apart.

HP Stream 7 01 back plate removed

This was how users could access its microSD slot for adding more storage space. And given how the battery is clearly visible when the back is removed, I thought it was also to enable easy battery replacement. My assumption was wrong! The battery appears to be glued in place and WARNING: BATTERY IS NOT REMOVABLE printed on the battery. Curiously that was printed with a dot matrix printer, implying this specific battery is not always non-removable, perhaps it is removable from another device but that won’t help us here today anyway so let’s move on.

HP Stream 7 02 bashed corner

I don’t remember ever dropping this tablet, but one corner tells a tale of my neglect.

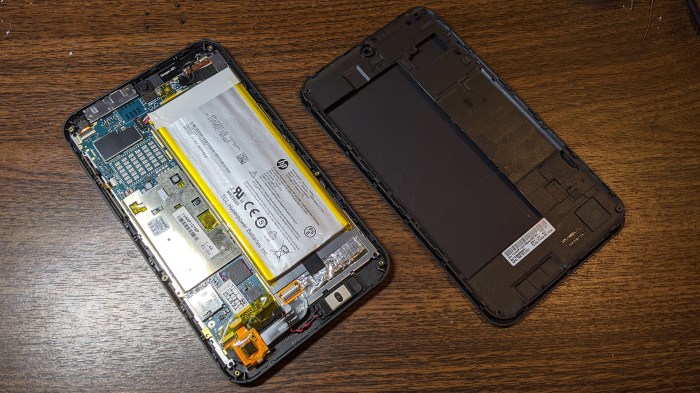

HP Stream 7 03 inner plate removed

If I want to try running this device without battery, I will need to access its battery connector which is hidden underneath the next piece of plastic. That piece is fastened quite well by a large number of plastic clips, backed up by small screws. Together they created a pretty durable enclosure for this tablet while still being removable. There was nothing tricky about opening up this device. Once the second back plate was removed, the battery connector was accessible.

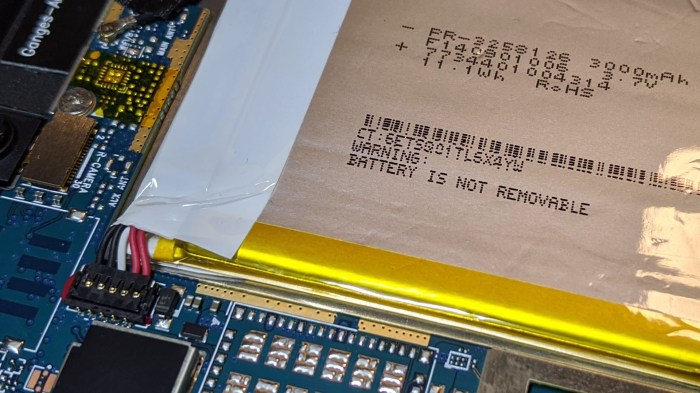

HP Stream 7 04 battery is not removable

Once exposed the connector easily popped free. I pressed the power button and… nothing. Unlike laptops, this device refuses to run without a battery. This makes it less useful for the current project. Nevertheless, such ease of access to durable internals has raised my opinion of this tablet. And since I had it open, I might as well look around a little more.

One thought on “HP Stream 7 Battery Disconnect Test

  1. Not all hope is lost with the tablet.

    Hi there, I owned a HP Stream 7 tablet exactly like yours, and I found several power management issues as well and managed to solve them. If you want to read about it you can search HP Stream Windows tablet battery life solved + kebris (posted it on my website), didn’t want to post the link here to avoid people thinking is link bait, it’s not.

    Now directly related to your article: during my research trying to fix this tablet found several articles where people directly wired cables with the right voltage to the battery+tablet or just the tablet, and so they managed to keep it working as you state it’s your goal. Why? as you already know there is no way to use the tablet USB port and charge it at the same time unless you buy an expensive station, otherwise it’s USB or charge, not both at the same time. BTW managed to build a USB thingy with switch to USB or to charge, but I didn’t like it anyway.

    I no longer have this tablet, sold it a while ago, but came across your article searching for some specs on google search (yes I’m thinking on buying one of this again). Good luck if you decide to try the direct table, you can search the web for direct connection options, I didn’t go for it because I didn’t want to have wires on it.

    Good luck.
